Features:
- 2-way performance coaxial speaker system which combines outstanding sound quality with versatile physical integration options
- High efficiency and 3 Ohms technology for maximized power output of the amplifier
- Automotive grade FlexConnect terminal allow fast and secure connection as well as direct connection to the original cable harness due to optionally available car-specific adaptors
- Tweeter
- 0.75” / 20 mm tweeter with titanium dome for accurate and dynamic treble response
- Highly efficient neodymium magnet for high magnetic flux linearity
- Midrange
- 4" / 100 mm midrange with unique Cenosphere coated paper cone for precise and detailed sound reproduction
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
- Shallow neodymium magnet system for low installation depth and high efficiency
- Crossover
- Integrated with 6 dB slope
- Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

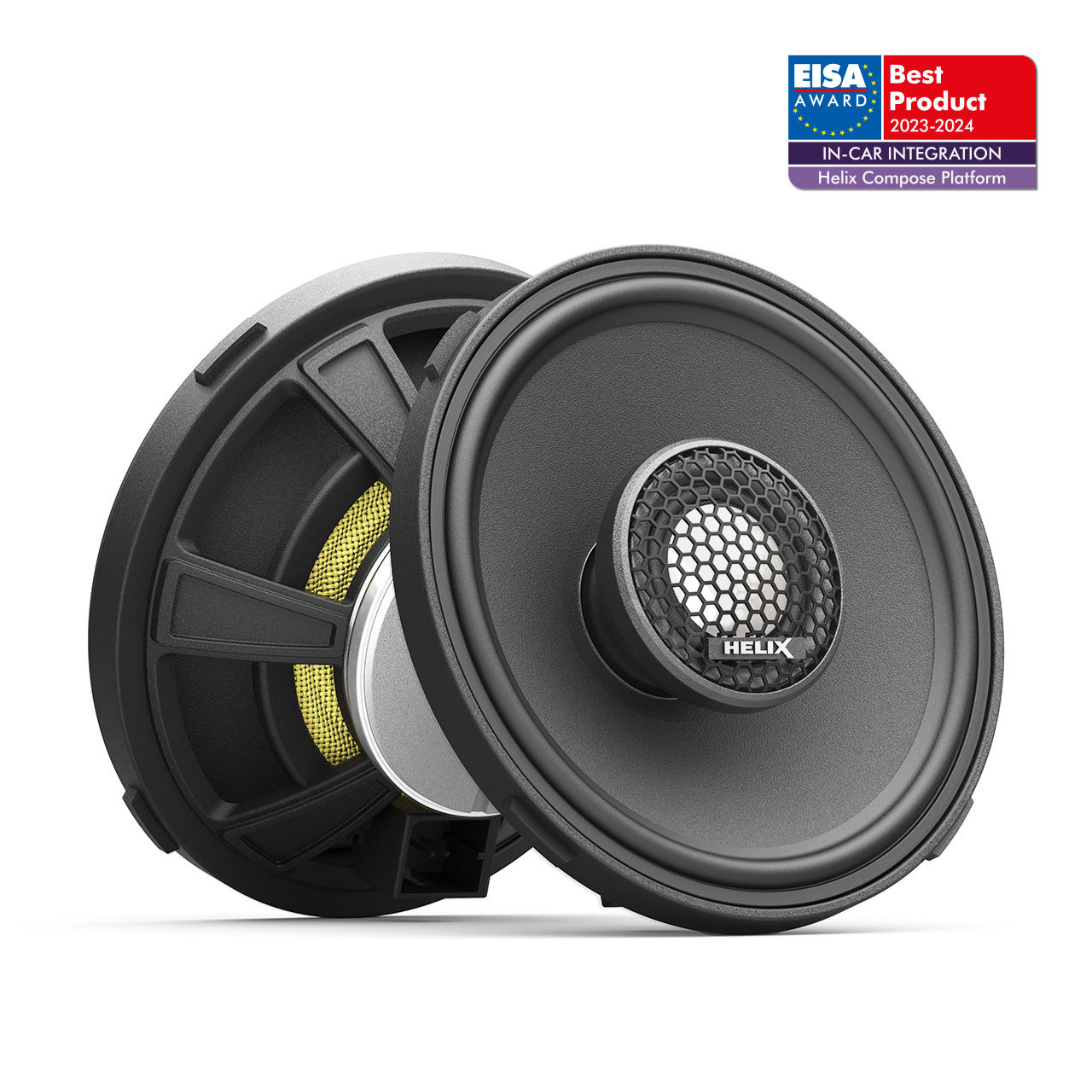

Helix Compose i3 C100.2FM-S3
$379.99 Regular Price
$341.99Sale Price
Power Handling RMS / Max.
P
80 / 120W
Frequency Response
100 Hz - 25,000 Hz
Impedance
Z
3 Ω
Sensitivity
SPL
91 dB @ 2.83V / 1m
87 dB @ 1W / 1mOuter Diameter
ø
98.0 mm / 3.86”
Installation Diameter
ø
89.0 mm / 3.50”
Installation Depth
30.0 mm / 1.18”
Midbass
Impedance
Z
3 Ω
DC Resistance
Re
3.0 Ω
Resonance Frequency
Fs
137 Hz
Mechanical Q Factor
Qms
4.37
Electrical Q Factor
Qes
0.78
Total Q Factor
Qts
0.66
Compliance
Cms
456μm/N
Equivalent Air Volume
Vas
2.1 L
Force Factor
B*l
3.2 Tm
Cone Area
Sd
57 cm2
Cone Material
Paper with Cenosphere coating
Moving Mass
Mms
3.0 g
Mechanical Resistance
Rms
0.58 kg/s
Voice Coil Diameter
ø
25 mm
Voice Coil Winding Height
4.8 mm
Max. Linear Excursion
Xmax
+/- 2.0 mm
Tweeter
Voice coil diameter
ø
20 mm
Cone Material
Titanium dome and neodymium magnet
