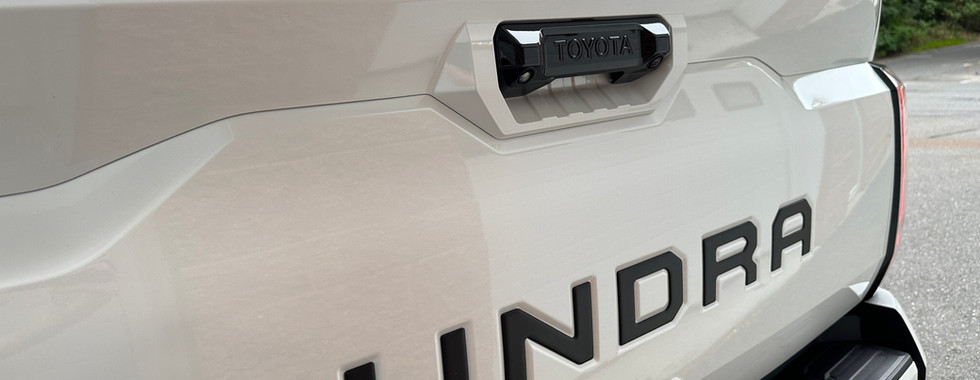

2023 Toyota Tundra Capstone



This Tundra came to us right off the showroom floor for radar and laser countermeasures as well as a much needed audio upgrade from the factory JBL system.


In addition to the core audio and safety enhancements we added, we made some visual changes as well. The client wanted a blacked-out TRD PRO look to the truck. We replaced the front grilles, fender flares, handles, and window trim to achieve that look - all OEM parts.

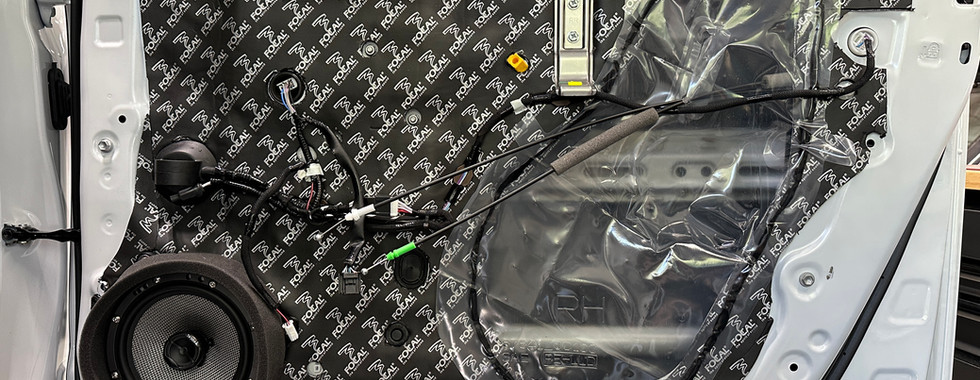

​The audio system consisted of a 3-way (tweeter, mid-range, and mid-bass) active set of Focal Access speakers for the front of the vehicle and the Access coaxial speakers for the rear passengers. The inner and outer door panels were treated with Second Skin Dampifier PRO and Focal B.A.M. tri-layer sound treatment to reduce resonant vibrations and reduce exterior sound interference.


As this was a hybrid there was no room under the seats for a subwoofer enclosure - we fabricated a form-fitted enclosure to go behind the seats housing a JL Audio 13TW5. The enclosure utilized factory bolt locations to secure it to the vehicle allowing for full use of the vehicle without compromising the quality of the bass response. The full-range speakers were powered by a Mosconi PICO 10-channel hi-res DSP with a 8-channel built-in amplifier providing over 500W of power. The 13TW5 was powered by a Mosconi PICO mono-block amplifier with up to 750W dedicated to the bass response in the vehicle. Both amplifiers were bolted to a factory location under the rear seats via a composite mounting solution we made in-house leaving it fully serviceable yet hidden from immediate view.


Finally we fitted the truck with a K40 Platinum 360 system with the K40 Optix laser defusers for full front coverage. The K40 front and rear radar receivers were hidden behind the front and rear bumpers respectively. The four (4) laser defuser heads were hidden in bespoke mounting pods with special high-gloss black acrylic to allow for full functionality of the defusers while blending them into the front grille.
